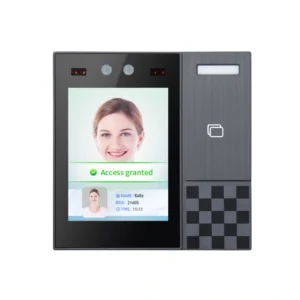

2.8-Inch Face Access Terminal
NAT-V6 Lite
Control entry to small offices, shops and restricted indoor rooms with a compact 2.8-inch face access terminal. Face recognition, card verification and password authentication provide multiple entry options. Wired networking and Wi-Fi support different installation layouts, while relay and Wiegand connections allow integration with door access equipment.
2.8-Inch Touchscreen — Compact touch display for office doors, meeting rooms and restricted indoor areas.
Three Verification Methods — Supports face recognition, IC/ID cards and password authentication.
Liveness Detection — Helps identify spoofing attempts during face verification.
Wired and Wi-Fi Networking — Offers network connection options to suit the installation location.
Door Control Interfaces — Relay, exit button input and door sensor connections support door access installations.
Wiegand and USB Interfaces — Wiegand output supports compatible access controllers, with USB available for supported device operations.
Face Access Control for Small Offices and Shops

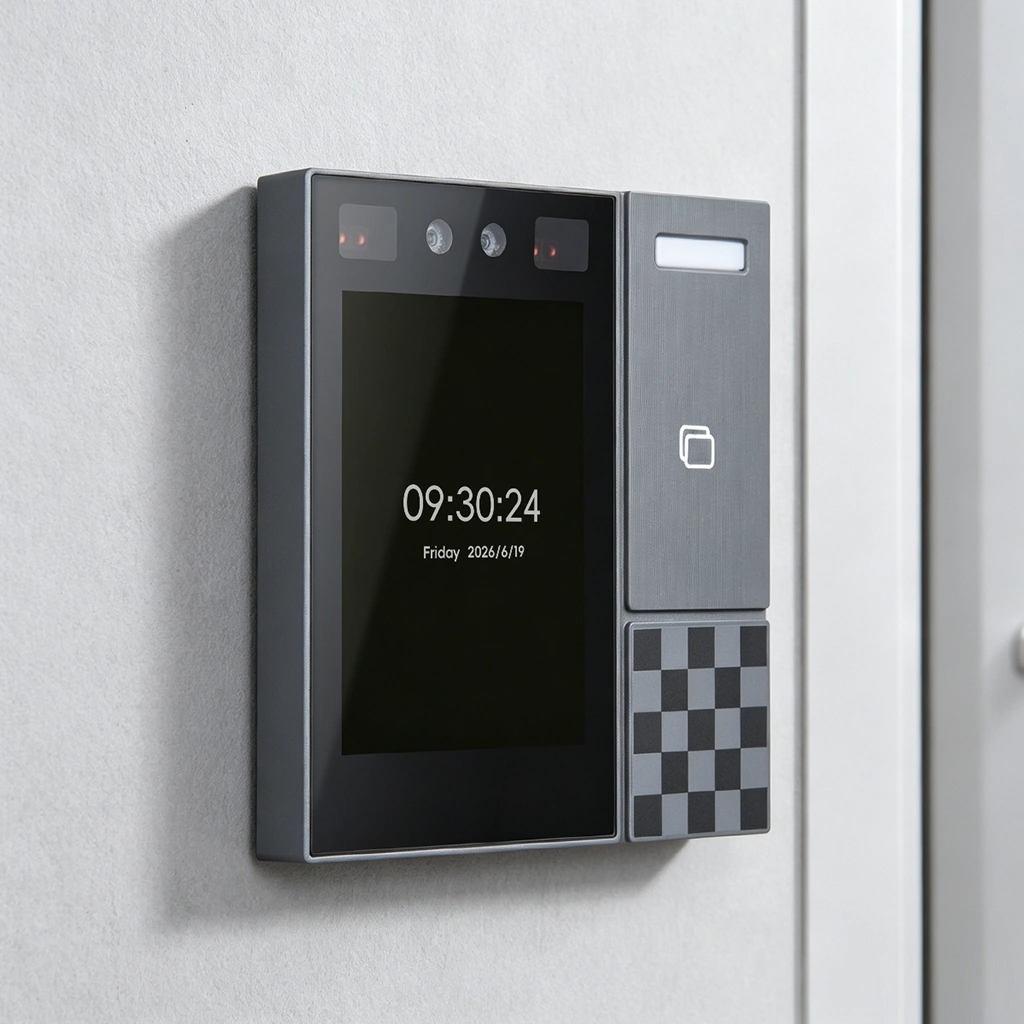

Equip office entrances, shop staff doors and storage rooms with face, card or password verification. The compact touchscreen terminal fits beside doorways where mounting space is limited. Wired networking or Wi-Fi can be selected according to the available network infrastructure. Relay, exit button and door sensor connections support integration with compatible electric locks and door accessories, while Wiegand output allows connection to an external access controller.
Item
Operating System
Linux
Processor
High performance ARM processor
Screen
2.8-inch LCD screen
Touch Screen
Capacitive touch screen
Recognition Distance
0.3–1.5 m
Recognition Angle
30° left/right, 30° up/down
Recognition Time
＜0.5 s
Face Capacity
2,000
Storage Capacity
50,000
Card Swiping
13.56MHz band card recognition, support for ISO/IEC 14443 TypeA, support for optional 125KHz ID card recognition function
Network
100Mbps Ethernet
Camera
Dual cameras, visible light + near infrared
Effective Pixels
1MP
Power Supply
DC12V/1A
Power Consumption
10W (Max)
Operating Temperature
-10°C to +50°C
Humidity
10%–90% RH, no condensation
IP Rating
IP42
Dimension
86 × 86 × 17 mm
Where the NAT-V6 Lite Face Access Control Terminal Is Used
The NAT-V6 Lite face access control terminal is commonly deployed in small office entrances, retail shop doors, storage rooms, server rooms, and restricted areas within commercial buildings. Its compact size and simple operation make it suitable for businesses that need basic access control without complex management features. The terminal can also be used as a secondary entrance verification device alongside a main lobby turnstile system.
Technical Features for System Integrators
The NAT-V6 Lite supports Wiegand and RS485 communication, making it compatible with most access control panels and electric lock systems on the market. Its compact housing simplifies wall-mounted installation, reducing on-site deployment time. The device also supports basic offline face database storage, ensuring continuous operation even if the network connection is temporarily interrupted. These technical features make the NAT-V6 Lite a practical choice for small-scale access control projects.
OEM & ODM Terminal Customization
New Auto Element provides OEM and ODM services for the NAT-V6 Lite face access control terminal. Distributors, contractors and system integrators can request custom logo printing, branded firmware, housing color options and private-label packaging. We also provide SDK and API documentation so the terminal can be connected to your own access management platform. Contact our engineering team for a customized solution based on your project requirements.We provide bidding documents, technical datasheets and remote technical support for commercial access control projects.
Get in Touch for Your Access Project
Looking for a reliable face access control terminal for your next access control project? Share your project specifications, and our team will send you a custom quotation and product datasheet. Explore our full access control product range or contact our sales team today. We support global shipping and OEM customization for system integrators and security contractors. All products come with a 12-month warranty and lifetime technical support.
