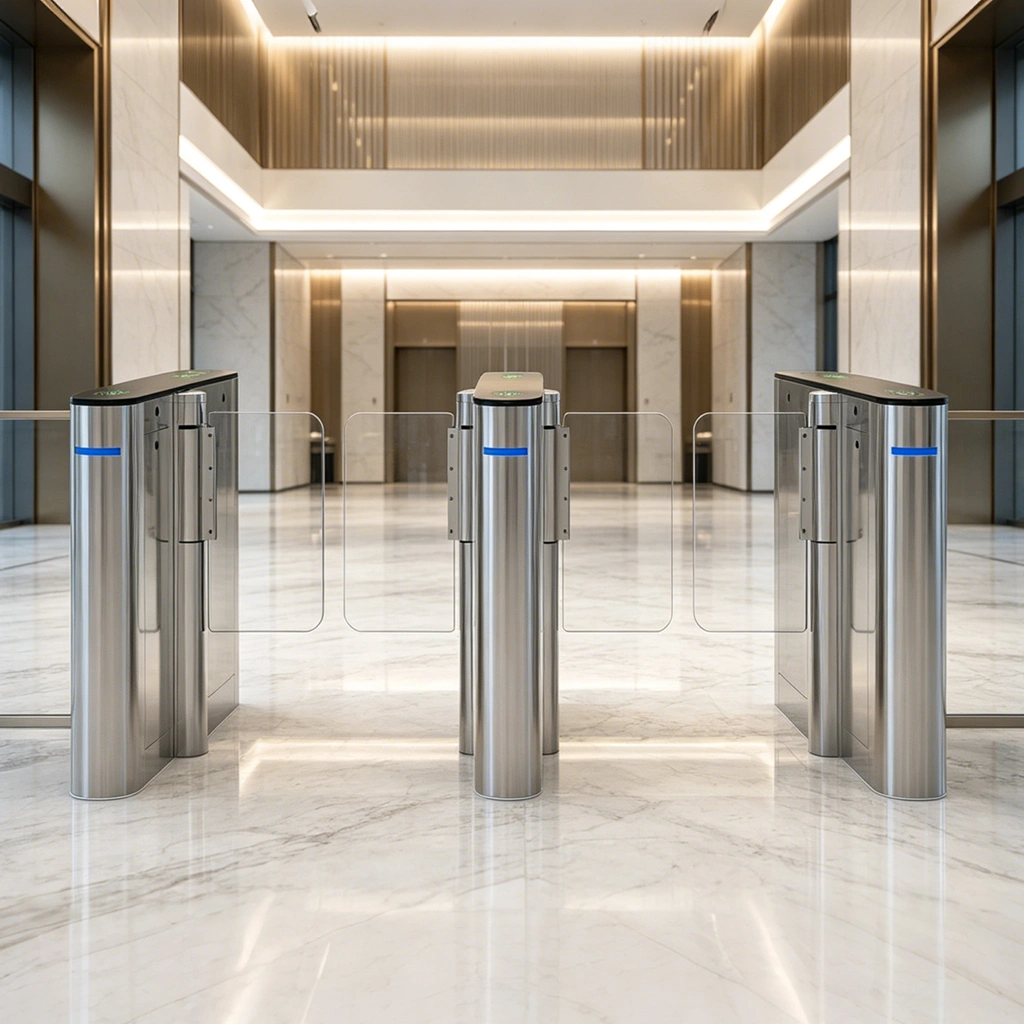

NAT-G205
Luxury Bridge Flat Rounded Speed Gate
The NAT-G205 is a bridge-style flap barrier turnstile designed for high-traffic office buildings, metro stations and commercial buildings that require fast pedestrian flow and reliable access control.
- Bridge-style rounded housing with premium black acrylic top cover.
- Fully automatic flat narrow movement with smooth, quiet running.
- Mechanical + infrared + circuit-control triple anti-pinch / anti-bump protection.
- Three-color LED direction indication: blue / green / red.
- Automatic opening on power failure and reset after power restoration.
- Fault self-inspection and alarm prompting for easier maintenance.
NAT-G205 Flap Barrier Turnstile for Fast and Safe Entrance Control
The NAT-G205 flap barrier turnstile integrates triple anti-pinch safety sensors and smooth low-noise movement, ensuring both user safety and comfortable passage. This bridge-style turnstile features flat rounded edges and intelligent LED guidance lights, making it suitable for premium office lobbies, subway entrances and commercial building access points. It can be integrated with facial recognition terminals, RFID readers and QR code scanners to build a complete entrance control system. The brushless motor design ensures long service life and minimal maintenance requirements.
Item
Appearance Size
1200 × 200 × 980 mm
Material Structure
GB 304 stainless steel; 1.5 mm face cover, 1.2 mm side plate
Channel Width
650 mm
Wing Width
Standard 380 mm
Control Method
Fully automatic
Control Direction
Right-hand one-way / left-hand one-way
Alarm & Safety
Illegal intrusion and tailgating alarm
Traffic Speed
30 persons/minute
Power Supply
AC110V–AC220V
Operating Environment
Indoor / outdoor (awning recommended)
Communication
TCP/IP or RS485
Where the NAT-G205 Flap Barrier Turnstile Is Used
The NAT-G205 flap barrier turnstile is commonly deployed in office building lobbies, metro stations, shopping malls, hospital entrances and university campuses. Its fast opening speed of less than 0.5 seconds makes it suitable for high-traffic environments where pedestrian flow needs to be managed efficiently. The turnstile can be configured with different barrier lengths and LED colors to match the interior design of the building.
OEM & ODM Turnstile Customization
New Auto Element provides OEM and ODM services for the NAT-G205 flap barrier turnstile. Distributors, contractors and system integrators can request custom housing finishes, branded LED colors, logo engraving and private-label packaging. We also provide SDK and API integration so the turnstile can be connected to your own access management platform. Contact our engineering team for a customized solution based on your project requirements.
Technical Features for System Integrators
The NAT-G205 supports Wiegand 26/34/56 output, making it compatible with most access control panels and face recognition terminals on the market. Its brushless motor ensures quiet operation and long service life, while the triple anti-pinch sensors detect pedestrians and prevent the barriers from closing on people. The device also includes automatic reset functionality, returning to the closed position after each passage. These technical features make the NAT-G205 a reliable choice for integrators who need a stable, easy-to-deploy entrance solution for high-traffic commercial properties.
Get in Touch for Your Turnstile Project
Looking for a reliable flap barrier turnstile for your next project? Explore our full access control product range or contact our sales team with your specifications. We support global shipping and OEM customization for system integrators and security contractors. All products come with a 12-month warranty and lifetime technical support.
