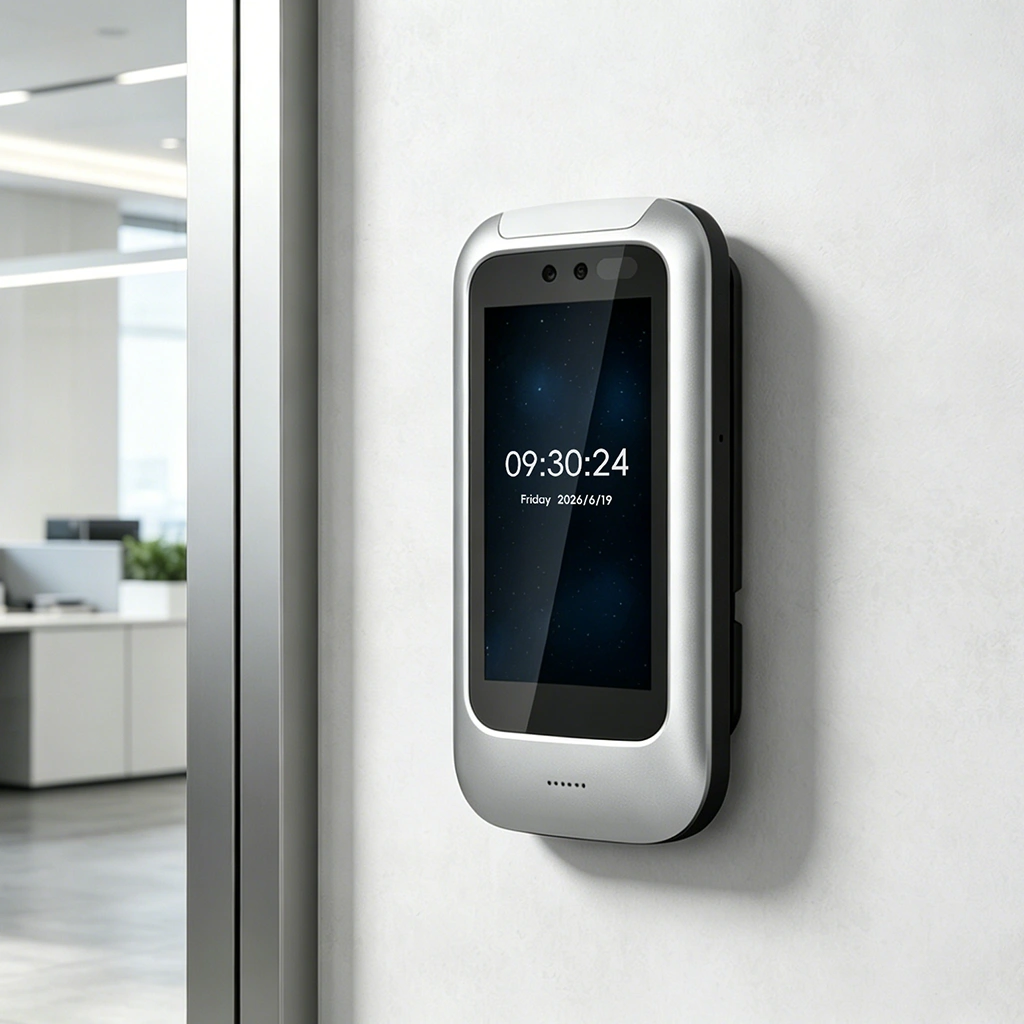

NAT-V5 Lite
Key Features of NAT‑V5 Lite
The NAT-V5 Lite is a binocular face recognition terminal equipped with a 5-inch IPS all-sight LCD touch screen and binocular live detection for reliable access control.
- Industrial grade design, with stable performance and smooth lines
- 5-inch IPS all-sight LCD touch screen
- 99.99% recognition accuracy (99.77% recognition rate under 1% false accept rate; 99.27% recognition rate under 0.1% false accept rate)
- Recognition speed less than 1s
- 50-thousand level face database (Max. 100-thousand face database)
- Live face detection
- Anti-backlight
- Embedded card reader
- Wi-Fi
The NAT‑V5 Lite supports multiple verification modes for different site requirements.When deploying access‑control projects, the NAT‑V5 Lite can work well with most standard turnstile systems for full pedestrian entry management.
For global security industry standards, you can refer to resources published by IFSEC Global.
NAT-V5 Lite Binocular Face Recognition Terminal for Reliable Access Control
The NAT-V5 Lite binocular face recognition terminal features a 5-inch IPS all-sight LCD touch screen and binocular live detection technology, ensuring accurate identity verification in various lighting conditions. This binocular face terminal supports fast recognition and anti-spoofing protection, making it suitable for office entrances, factory access points and commercial building lobbies. It can be integrated with electric locks, turnstiles and access control panels to build a complete entrance control system.
Display
Display screen
5-inch IPS all-sight LCD touch screen
Resolution
480 * 854
RGB camera
CMOS
1/2.7″ progressive scan CMOS
WDR
120dB
Resolution
1932 (V) * 1092 (H)
FOV
74.38°
Shutter type
Electronic rolling shutter
AEC/AGC/AWB
Auto
Lens
f=4.35mm, F2.0
Infrared camera
CMOS
1/2.7″ progressive scan CMOS
WDR
120dB
Resolution
1932 (V) * 1092 (H)
FOV
67.57°
Shutter type
Electronic rolling shutter
AEC/AGC/AWB
Auto
Lens
f=4.2mm, F1.6
Interfaces
Interfaces
RS232, Wiegand26/34 Output, Relay Output, TTL Output, USB Type-A, Door Sensor Input, Exit Door Input
Communication mode
RJ45, Wi-Fi
Functions
Accuracy
Up to 99.99%
Capacity
50-thousand (Max. 100-thousand) pieces of face images
Tamper alarm
Supports
Voice prompt
Supports
Type of card reader
Standard MIFARE Card
Records
1 million pieces of recognition records
Recognition distance configuration
Live detection: 0.3-1.5m; Non-live: 0.3-3m
Custom UI
Supports
Remote update
Supports
Software
Cloud, LAN
System parameters
Operating system
Linux
CPU
Dual-core ARM Cortex-A7
Storage
512M RAM, 8GB ROM
System parameters
Protection grade
IP54
Power
DC 12V/2A
Working temperature
-10°C ~ 50°C
Working humidity
10% ~ 90%
Power consumption
Max. 15W
Dimension (without support)
190.00mm * 87.53mm * 17.00mm
Where the NAT-V5 Lite Binocular Face Recognition Terminal Is Used
The NAT-V5 Lite binocular face recognition terminal is commonly deployed in office building entrances, factory access points, commercial building lobbies and meeting room entrances. Its binocular live detection provides reliable anti-spoofing protection against photos, videos and masks. The terminal is suitable for small to medium-sized projects where both reliability and budget efficiency are important considerations.
Technical Features for System Integrators
The NAT-V5 Lite supports TCP/IP, Wiegand and RS485 communication, allowing flexible integration with existing access control panels and electric lock systems. Its 5-inch IPS touch screen provides a clear user interface for recognition status display and configuration. The device also supports offline face database storage, ensuring continuous operation even if the network connection is interrupted. These technical features make the NAT-V5 Lite a practical choice for integrators working on mid-range access control projects.
OEM & ODM Terminal Customization
New Auto Element provides OEM and ODM services for the NAT-V5 Lite binocular face recognition terminal. Distributors, contractors and system integrators can request custom logo printing, branded firmware, housing color options, protocol adaptation and private-label packaging. We also provide SDK and API documentation so the terminal can be connected to your own access management platform. Contact our engineering team for a customized solution based on your project requirements.
Get in Touch for Your Access Project
Looking for a binocular face recognition terminal for your next project? Explore our full access control product range or contact our sales team with your specifications. We support global shipping and OEM customization for system integrators and security contractors. All products come with a 12-month warranty and lifetime technical support.
