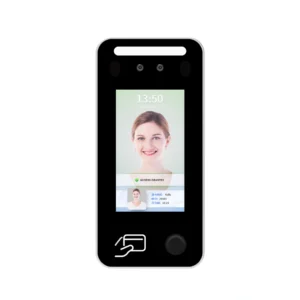

5-Inch Face Access Terminal

NAT-V6

Manage employee entry at office doors and commercial building entrances with a 5-inch face access terminal. The IPS touchscreen provides on-screen verification feedback, with face recognition, card authentication and optional fingerprint verification. Liveness detection helps identify spoofing attempts, while Wiegand and RS485 interfaces support connection to access control equipment.

  • 5-Inch IPS Touchscreen — Clear on-screen feedback and touch controls for everyday operation.

  • Multiple Verification Options — Supports face and card authentication, with fingerprint verification available as an option.

  • Liveness Detection — Helps detect spoofing attempts during face verification.

  • 24,000-Face Capacity — Stores up to 24,000 faces and 69,000 records.

  • Integration Interfaces — RJ45, Wiegand and RS485 connections support access system integration.

  • Door Control Connections — Interfaces for door sensors, doorbells, alarms and electric locks.

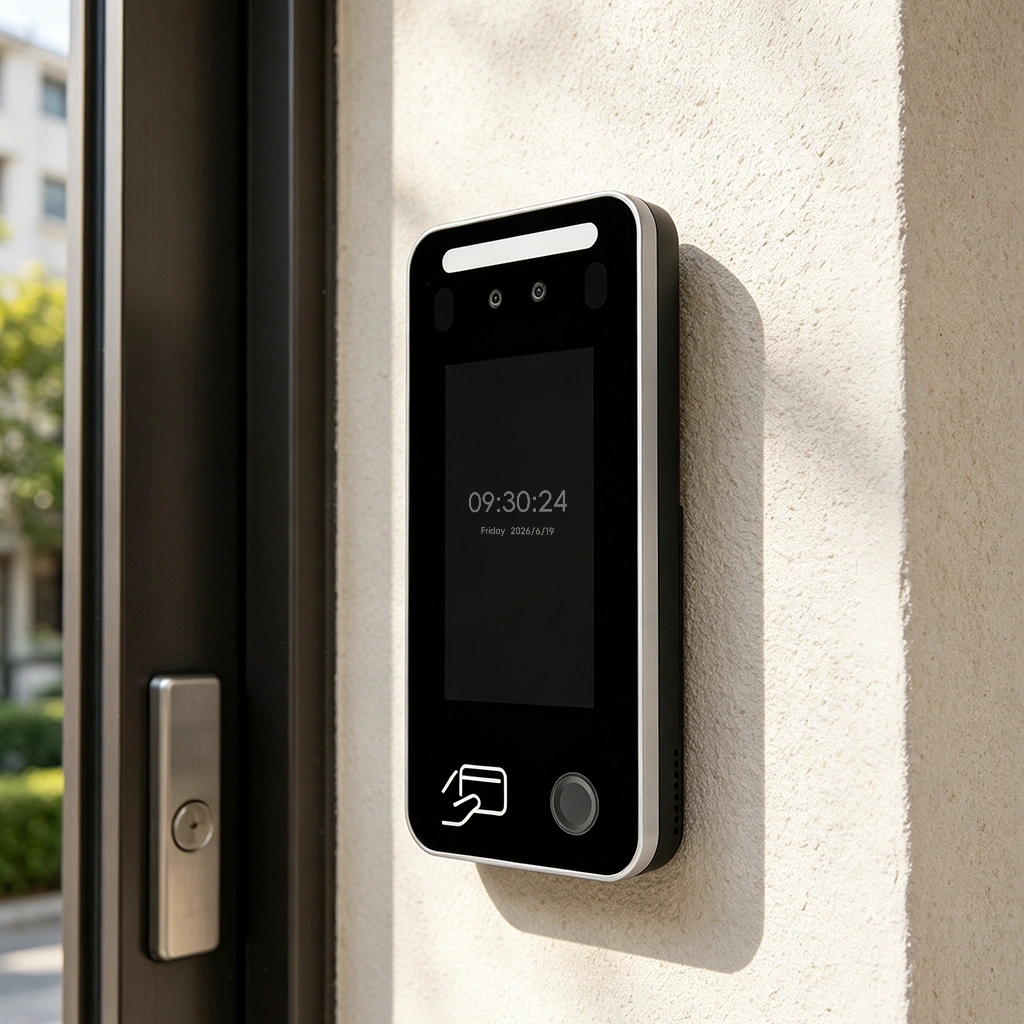

Face Recognition Terminal for Office Door Access

Equip office doors and restricted staff entrances with face and card verification through a single terminal. The 5-inch IPS touchscreen displays verification feedback, while optional fingerprint hardware adds another authentication method. Wiegand and RS485 interfaces support integration with compatible access controllers. Connections for electric locks, door sensors, doorbells and alarms allow the terminal to form part of a complete door access installation.

Item

Operating System

 Linux

Processor

 Dual Core ARM Cortex-A7 + RISC-V MCU

Memory

1G + 8G

Screen

 5-inch IPS screen, 854 × 480

Touch Screen

 Capacitive single touch

Recognition Height

1.2~2.3 meters, angle adjustable

Recognition Distance

0.3~1.5 meters, depends on lens

Recognition Time

 <0.3 s

Face Capacity

 24,000

Fingerprint Capacity

3,000

Record Capacity

69,000

Card swiping module

Mifare one (M1), S50, S70, NTAG2xx and other support 125KHz frequency band T 13.56MHz frequency band cards,K, EM and other series cards

Network

RJ45 10/100M Ethernet

Camera

Dual cameras, 2MP

WiFi module

2.4GHz Wifi SoC chip, integrated IEEE 802.11b/g/n baseband and RF circuit, maximum 54M physical layer rate

Communication

RS485

Power Supply

DC12V/2A

Power Consumption

10W (Max)

Operating Temperature

-20°C to +55°C

Humidity

0–90% RH, no condensation

IP Rating

IP55

Dimension

208 × 98 × 20.5 mm

Where the NAT-V6 Smart Face Recognition Terminal Is Used

The NAT-V6  smart face recognition terminal is commonly deployed in premium office building lobbies, corporate headquarters, five-star hotel entrances and high-end commercial properties. Its larger display and premium design make it suitable for environments where the entrance experience reflects the company’s brand image. The terminal can be integrated with turnstiles, speed gates and automatic doors to create a complete entrance control system.

Technical Features for System Integrators

The NAT-V6  supports TCP/IP, Wiegand and RS485 communication, allowing flexible integration with existing access control panels and turnstile controllers. Its larger touch screen provides a more interactive user interface, displaying welcome messages, access status and other customizable content. The device also supports offline face database storage, ensuring continuous operation even if the network connection is interrupted. These technical features make the NAT-V6 Pro a reliable choice for integrators working on premium commercial projects.

OEM & ODM Terminal Customization

New Auto Element provides OEM and ODM services for the NAT-V6 Pro smart face recognition terminal. Distributors, contractors and system integrators can request custom logo printing, branded firmware, housing color options, protocol adaptation and private-label packaging. We also provide SDK and API documentation so the terminal can be connected to your own access management platform. Contact our engineering team for a customized solution based on your project requirements.

Get in Touch for Your Access ProjecGet in Touch for Your Access Project

Looking for a premium smart face recognition terminal for your next project? Explore our full access control product range or contact our sales team with your specifications. We support global shipping and OEM customization for system integrators and security contractors. All products come with a 12-month warranty and lifetime technical support.Contact us today for a customized quotation.
