NAT-G258
Luxury Ultra-Narrow Speed Gate
The NAT-G258 is a high-performance ultra narrow speed gate designed for entrance points where space is limited but premium security and aesthetics are still required
- Luxury ultra-narrow body for high-end architectural environments.
- Integrated anti-collision self-reset movement with stable performance.
- Precision transmission system for accurate locking, unlocking, and motion control.
- Fast, quiet operation with self-checking and alarm functions.
- Automatic opening during power loss and reset after restoration.
- Ultra-bright LED direction indication for clear passage status.
NAT-G258 Ultra Narrow Speed Gate for Compact Entrance Solutions
The NAT-G258 ultra narrow speed gate features a slim profile that saves floor space while maintaining the premium performance expected from a high-end entrance system. Equipped with brushless precision drive and anti-collision self-reset technology, this compact speed gate delivers smooth operation and long service life. It can be seamlessly integrated with facial recognition terminals, RFID readers and QR code scanners to build a complete access control system. The narrow design makes it ideal for office building side entrances, retail stores, and any environment where a standard speed gate would be too wide.
Item
Appearance Size
1500 × 100 × 1000 mm
Material Structure
GB 304 stainless steel; 1.5 mm face cover, 1.2 mm side plate
Channel Width
Standard 650 mm
Wing Length
Standard 300 mm
Control Method
Fully automatic
Control Direction
Right-hand one-way / left-hand one-way
Alarm & Safety
Illegal intrusion and tailgating alarm
Traffic Speed
30 persons/minute
Power Supply
AC110V–AC220V
Operating Environment
Indoor / outdoor (awning recommended)
Communication
TCP/IP or RS485
Where the NAT-G258 Ultra Narrow Speed Gate Is Used

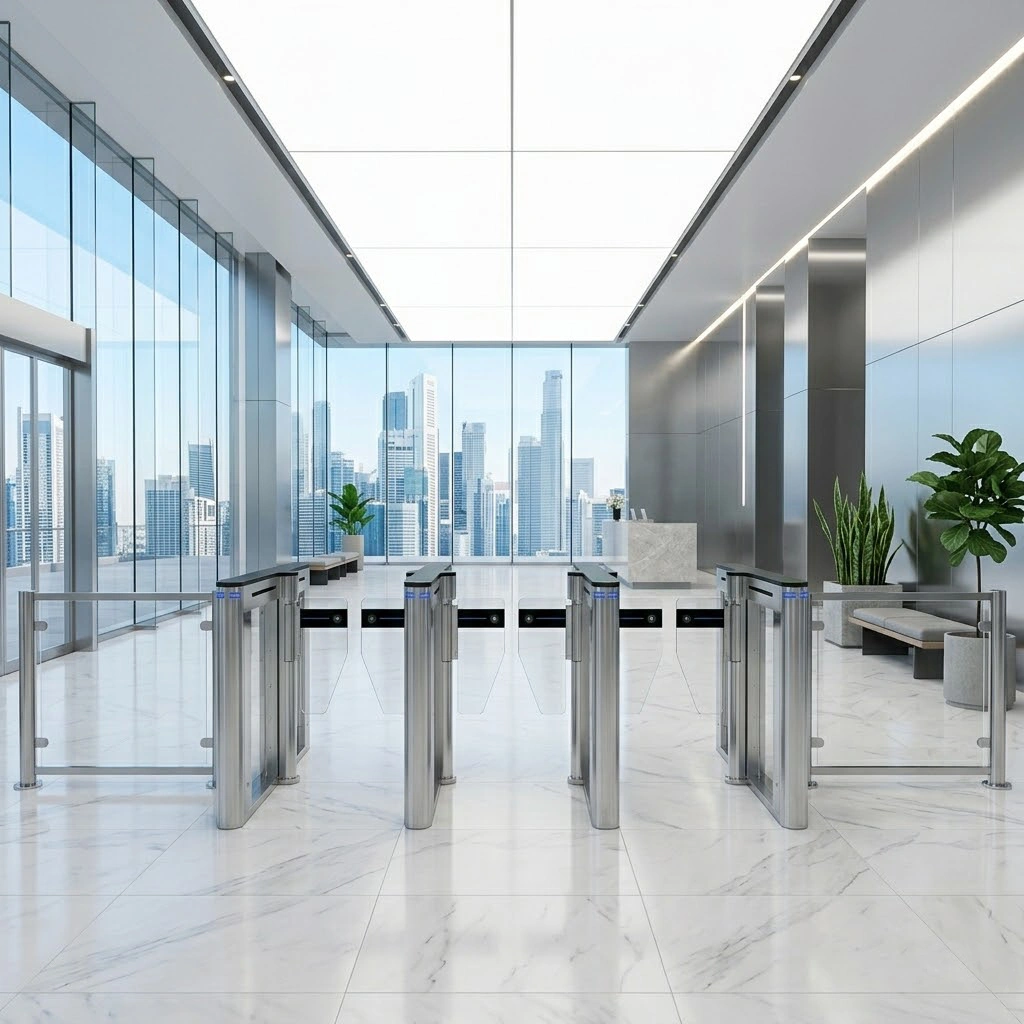

The NAT-G258 ultra narrow speed gate is commonly deployed in office building side entrances, retail storefronts, exhibition halls, museum entrances and any location where floor space is limited but premium access control is required. Its compact footprint allows multiple lanes to be installed in a narrower lobby compared to traditional wide-speed-gate designs. The sleek stainless steel housing also complements modern interior design aesthetics.
Technical Features for System Integrators
The NAT-G258 supports Wiegand 26/34/56 output, making it compatible with most access control panels and authentication terminals on the market. Its brushless motor ensures quiet operation and minimal maintenance, while the anti-collision self-reset mechanism prevents damage from forced entry attempts. The device also includes infrared safety sensors that detect pedestrians and prevent the barriers from closing on people. These technical features make the NAT-G258 a reliable choice for integrators working on space-sensitive entrance projects.
OEM & ODM Speed Gate Customization
New Auto Element provides OEM and ODM services for the NAT-G258 ultra narrow speed gate. Distributors, contractors and system integrators can request custom housing finishes, branded LED colors, logo engraving and private-label packaging. We also provide SDK and API integration so the speed gate can be connected to your own access management platform. Contact our engineering team for a customized solution based on your project requirements.
Why Choose the NAT-G258 for Your Project
The NAT-G258 combines a space-saving design with premium build quality, making it a practical choice for architects, interior designers and property managers who need both functionality and aesthetics. Its brushed stainless steel housing resists fingerprints and scratches, keeping the entrance looking clean over time. The turnstile also supports optional custom branding, so your project partner can deliver a unified visual identity at the entrance.
Get in Touch for Your Entrance Project
Looking for a compact speed gate for your next project? Explore our full access control product range or contact our sales team with your specifications. We support global shipping and OEM customization for system integrators and security contractors. All products come with a 12-month warranty and lifetime technical support.We look forward to hearing from you.
