Cylindrical Swing Gate

NAT-G203

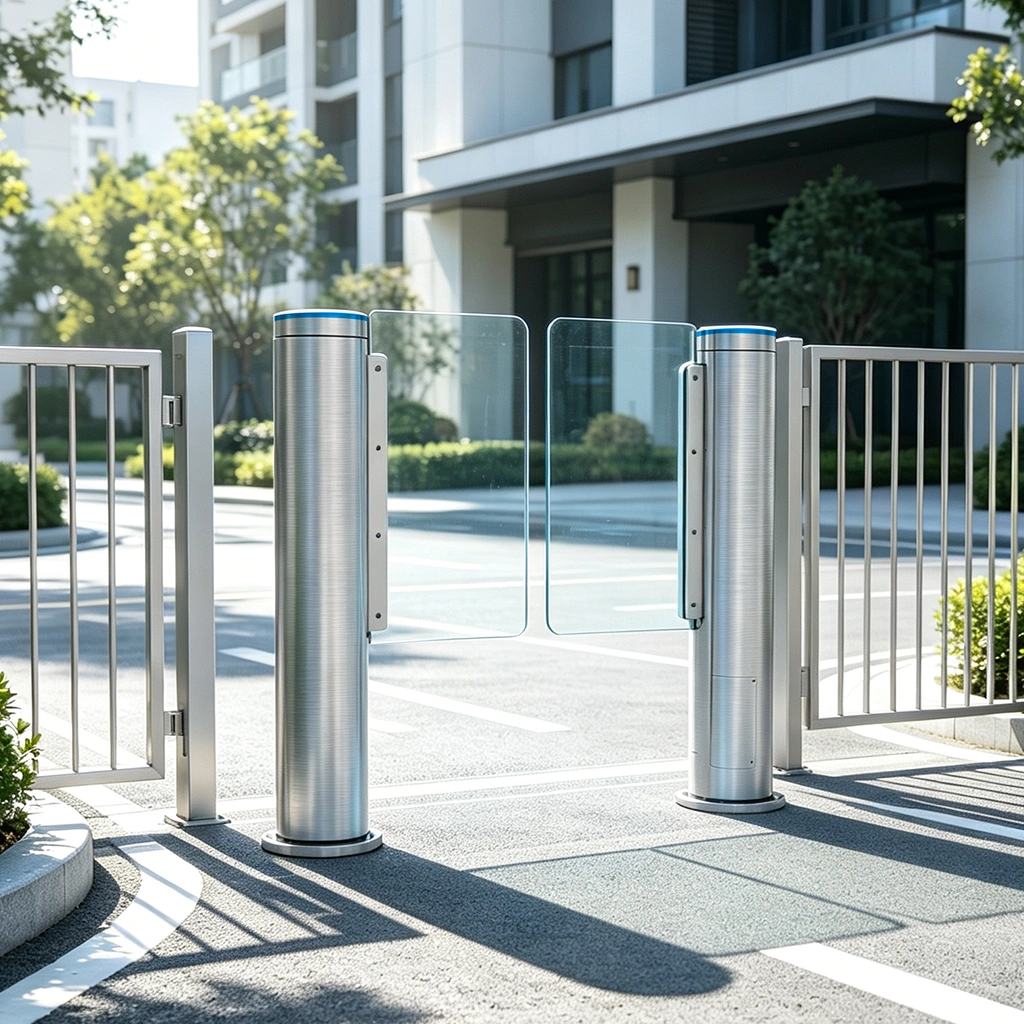

Control pedestrian entry at office buildings and residential entrances with an automatic swing gate. Cylindrical stainless steel posts support swinging barrier panels, while infrared detection and mechanical anti-pinch protection help manage passage. Configurable one-way or bidirectional access and LED indicators guide users through the entrance.

  • Cylindrical Stainless Steel Posts — Slim, rounded housings support the swinging barrier panels.

  • Automatic Swing Mechanism — Buffered movement provides smooth, low-noise opening and closing.

  • Passage Protection — Infrared detection and mechanical anti-pinch protection help safeguard pedestrians.

  • Flexible Access Modes — Supports bidirectional card access or authorization from one side.

  • Power-Failure Opening — Opens automatically during a power outage and resets after power is restored.

  • LED Direction Indicators — Display whether passage is permitted or restricted.

NAT-G203 Cylindrical Turnstile for Controlled Pedestrian Flow

The NAT-G203 cylindrical turnstile features infrared detection and mechanical anti-pinch protection, ensuring both user safety and reliable access control. This precision stainless steel turnstile is designed for controlled pedestrian flow in office buildings, factory entrances and commercial facilities. It can be integrated with facial recognition terminals, RFID readers and QR code scanners to build a complete entrance control system. The compact cylindrical design makes it suitable for both wide lobbies and narrower entrance points where space efficiency is important.

NAT‑G203 Main Specifications & Features

Item

Appearance Size

127 × 1000 mm (W × H)

Material Structure

GB 304 stainless steel; 1.5 mm face cover, 1.2 mm side plate

Channel Width

650 mm

Gate Length

Standard 620 mm

Control Method

Fully automatic

Control Direction

One-way / two-way (optional)

Alarm & Safety

Mechanical anti-pinch to prevent bumps

Traffic Speed

20 persons/minute

Power Supply

AC110V–AC220V

Operating Environment

Indoor / outdoor (awning recommended)

Communication

TCP/IP or RS485

Where the NAT-G203 Cylindrical Turnstile Is Used

The NAT-G203 cylindrical turnstile is commonly deployed in office building side entrances, factory checkpoints, parking lot access points, staff passageways and industrial park entrances. Its compact footprint allows multiple lanes to be installed in a narrower space compared to traditional wide speed gates. The stainless steel housing also complements modern industrial and commercial interior design aesthetics.

Technical Features for System Integrators

The NAT-G203 supports Wiegand 26/34/56 output, making it compatible with most access control panels and authentication terminals on the market. Its infrared safety sensors detect pedestrians and prevent the barriers from closing on people, while the mechanical anti-pinch protection provides an additional layer of safety. The device also includes automatic reset functionality, returning to the closed position after each passage. These technical features make the NAT-G203 a reliable choice for integrators working on access control projects with space constraints.

OEM & ODM Turnstile Customization

New Auto Element provides OEM and ODM services for the NAT-G203 cylindrical turnstile. Distributors, contractors and system integrators can request custom housing finishes, branded LED colors, logo engraving and private-label packaging. We also provide SDK and API integration so the turnstile can be connected to your own access management platform. Contact our engineering team for a customized solution based on your project requirements.

Get in Touch for Your Entrance Project

Looking for a compact cylindrical turnstile for your next project? Explore our full access control product range or contact our sales team with your specifications. We support global shipping and OEM customization for system integrators and security contractors. All products come with a 12-month warranty and lifetime technical support.
