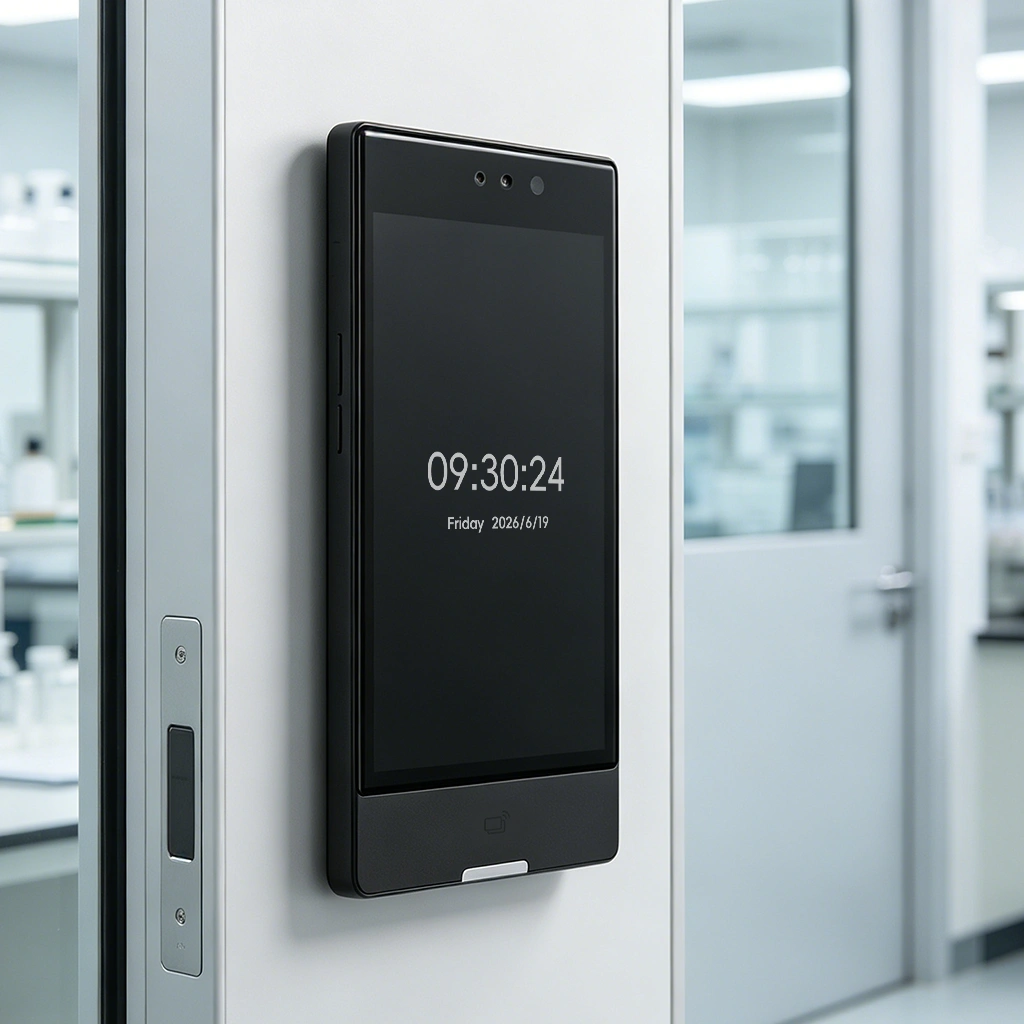

NAT-V5 Pro
Portrait recognition terminal
- Industrial-grade design, easy installation, stable performance
- 8- inch IPS full-view LCD touch screen
- The recognition accuracy rate is 99.99% (the recognition pass rate is 99.77% under a 1% misrecognition rate; the recognition pass rate is 99.27% under a 0.1% misrecognition rate)
- Recognition speed is less than 0.5 second
- Standard 30,000 images
- Support anti-backlight
- Support live body detection
- Built-in IC & ID card
- IP65 design
- Equipped with three-color led light
Capacity
Display
8-inch IPS full-view LCD touch screen, brightness 550cd/m
resolution
800*1280
RGB camera
Image Sensor
1/2.9″ Progressive Scan CMOS
resolution
1920*1080
field of view
Vertical 47° Horizontal 30°
focal length
4.3mm
aperture
F2.0
Shutter type
Electronic rolling shutter
3A function
Support AEC/gain/white balance
infrared camera
Serial communication interface
1 way RS-485
Relay output
1 door opening signal output
Wiegand interface
1 Wiegand 26/34/50/66 output, switchable Wiegand input (supports the same protocol type as the output)
signal input
1 signal input, supports switching
Network interface
1 channel 10/100M adaptive network port, WIFI4.0
restart button
1 reset button
Swipe card module
Built-in, IC & ID card
USB interface
1 way Type-A
Tamper switch
1
speaker
Built-in, 11.5W speaker
Function
Portrait detection
Detect and track 5 people at the same time
Recognition accuracy
99.99% (the recognition pass rate is 99.77% under a 1% misrecognition rate; the recognition pass rate is 99.27% under a 0.1% misrecognition rate)
Identify patterns
Face recognition, card swiping, face and card integration, face and ID comparison, password
Liveness detection
support
Equipment capacity
30,000 images, 30,000 cards
Identify records
100000 items
Stranger detection
support
Identify distance configuration
support
UI interface configuration
support
Remote upgrade
support
Deployment method
Public network, LAN
software support
Ustar LAN, Ustar Cloud
System parameters
operating system
Linux
CPU
Dual core ARM Cortex-A7, RISC-V MCU
NPU
1.2 Tops support INT8/ INT16
storage
Memory 512M, storage 8GB
General parameters
Operating temperature
-10°C ~ 60°C
Storage temperature
-20°C ~ 60°C
Working humidity
10% ~ 90%
Protection level
IP65
power supply
DC 12V/2A
Power consumption
Max. 15W
Equipment size
Wall-mount: 239×126×26mm
Turnstile: 346×126×62mm
(height×width×thickness)
Installation method
turnstile, wall mount
