NAT-G236

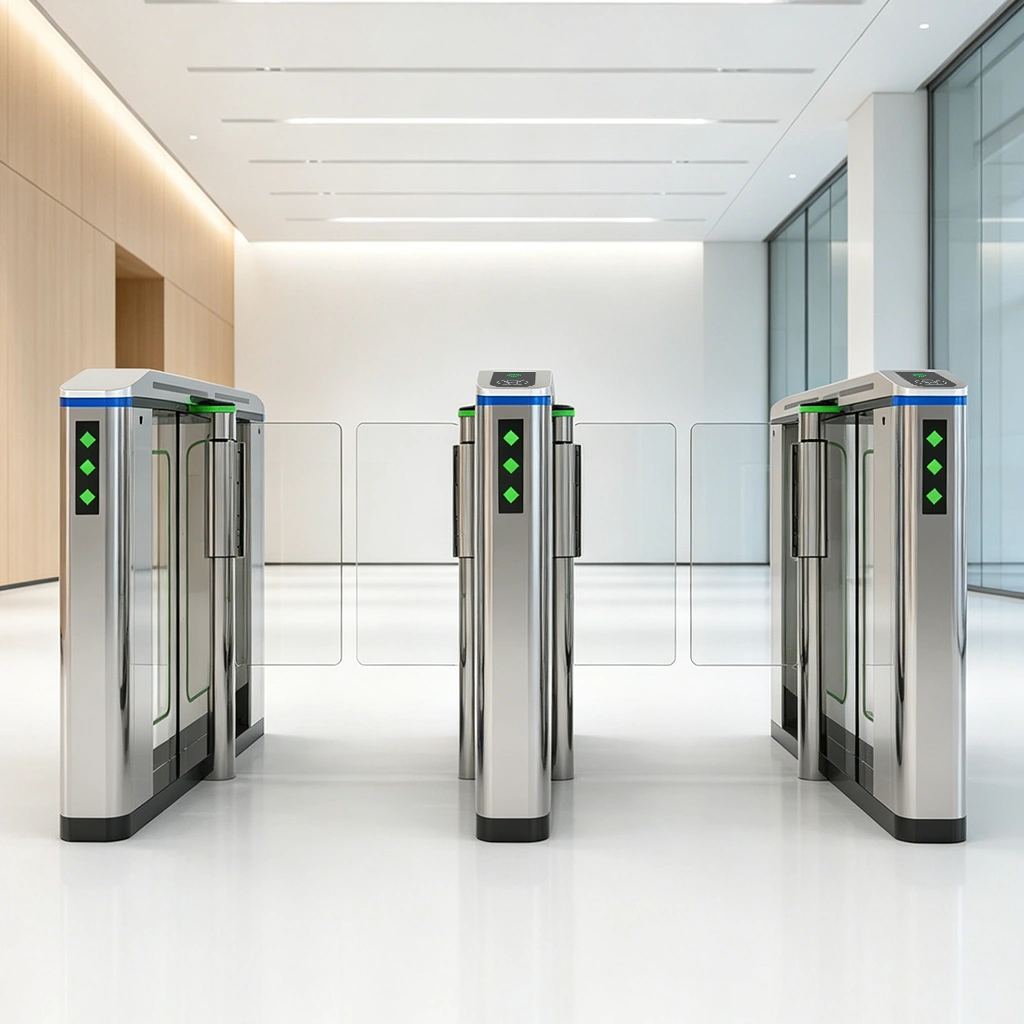

Galaxy Luxury Speed Gate
- Patented luxury appearance with rainproof 304 stainless steel housing.
- Fourth-generation fully automatic anti-collision self-reset mechanism.
- Brushless motor and precision anti-collision clutch for up to 10 million cycles.
- Fast, smooth, low-noise operation with triple anti-pinch protection.
- Automatic opening during power failure and automatic reset after restoration.
- Supports access control, attendance, visitor, elevator, and other smart system integrations.
Item
Appearance Size
1400 × 150 × 980 mm
Material Structure
304 stainless steel; 1.5 mm front cover, 1.5 mm side panels; acrylic sealing plate; acrylic swing gate
Channel Width
Standard 650 mm, max ≤ 950 mm
Swing Gate Length
Standard 300 mm, max 450 mm
Control Method
Fully automatic
Control Direction
Bidirectional / one-way / one-way + infrared exit (optional)
Alarm & Safety
Unauthorized intrusion alarm, tailgating alarm, triple anti-pinch / anti-collision
Traffic Speed
40 persons/minute
Power Supply
AC110V–AC220V
Operating Environment
Indoor / outdoor with rain canopy recommended; -30°C to 60°C; <95%RH non-condensing
Communication
Customizable, RS232, RS485, TCP/IP
